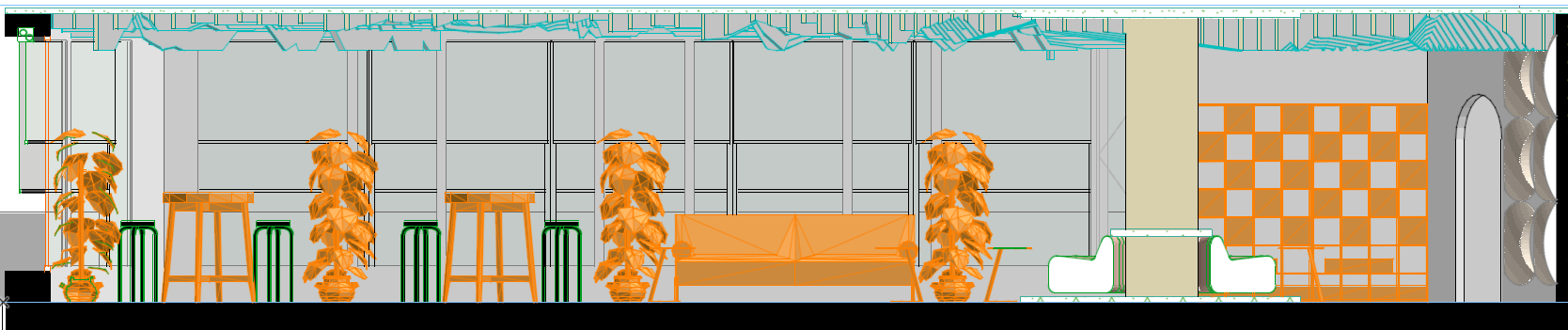

type technical orthographic architectural section critical constraint this must be a completely flat straight on cut through the space no perspective no vanishing points no depth imagine taking the detailed 3d perspective scene described below and crushing it flat onto a blueprint plane composition a strict linear arrangement of elements from left to right resting on a single continuous floor line against a flat background plane 1 the back plane the wall behind the furniture spanning the entire width is a massive floor to ceiling window system technical detail the windows sit on a solid sill parapet exactly 31cm high from the floor line to the right of the center there is a door outline on this back wall its bottom edge aligns perfectly with the 31cm window sill 2 the linear sequence of furniture left to right on the cut line far left high seating two identical black painted metal high tables each shown in flat elevation with two matching black metal stools mid left sofa a long camel brown leather sofa shown in a flat front view center the column sandwich cut view floor base a 6cm thick solid circular slab cut in half on the floor column a central structural pillar clad in white longitudinal kit kat tiles shown straight on seating a circular bench upholstered in brown leather built around the column base shown in cut section ceiling cap directly above the floor slab a matching 6cm thick solid circular slab is cut in the ceiling mid right storage a storage unit with a black metal skeleton in this flat view we see some empty rectangular shelves and some closed wood clad boxes 3 the ceiling floor the boundaries floor line continuous dark wood zig zag herringbone parquet ceiling line a deep white parametric baffle ceiling wavy blades viewed from the side critical detail the white baffles stop abruptly and are cut around the central 6cm ceiling slab creating a distinct gap for the slab 4 far right end an accent wall with wooden elements and an open doorway void cut through leading off screen lighting photorealistic daylight from the back windows above the 31cm sill rendered flatly onto the texture type technical orthographic architectural section critical constraint a completely flat straight on cut no perspective no depth of field the render must be hyper realistic focusing on texture deep shadows and light interaction on a flat plane atmosphere lighting crucial for realism dramatic lighting strong daylight filters through the windows creating deep realistic cast shadows across the floor and furniture giving volume to the flat elements window treatment the windows on the left and center are covered by heavy textured vertical blinds in alternating strips of two shades of beige warm sand and light cream the light filtering through them creates a striped pattern the split background plane left center back floor to ceiling windows sitting on a solid sill parapet exactly 31cm high right back behind storage this area is not window it is a solid wall clad in dark wood veneer paneling the door outline is located in this wood wall with its bottom edge aligned at the 31cm height linear sequence of elements flat cut left to right 1 far left high seating two black painted metal high tables with matching stools shown in flat elevation 2 mid left grand sofa a grand plush camel brown leather sofa new detail it features two integrated low side tables attached to its structure e g black metal frames with dark stone tops 3 center the grand column sandwich floor base a 6cm thick solid circular slab cut on the floor column central pillar clad in white longitudinal kit kat tiles grand seating a large thick circular bench in brown leather new detail the circular seating includes integrated curved side tables built into the upholstered structure ceiling cap directly above a matching 6cm thick solid circular slab in the ceiling 4 mid right storage against solid wall the storage unit black metal skeleton mix of empty shelves and wood clad boxes is positioned against the dark wood paneled solid back wall the ceiling floor floor continuous dark wood zig zag herringbone parquet with deep shadows cast upon it ceiling deep white parametric baffle ceiling wavy blades critical the white baffles stop abruptly and are cut around the central 6cm ceiling slab
