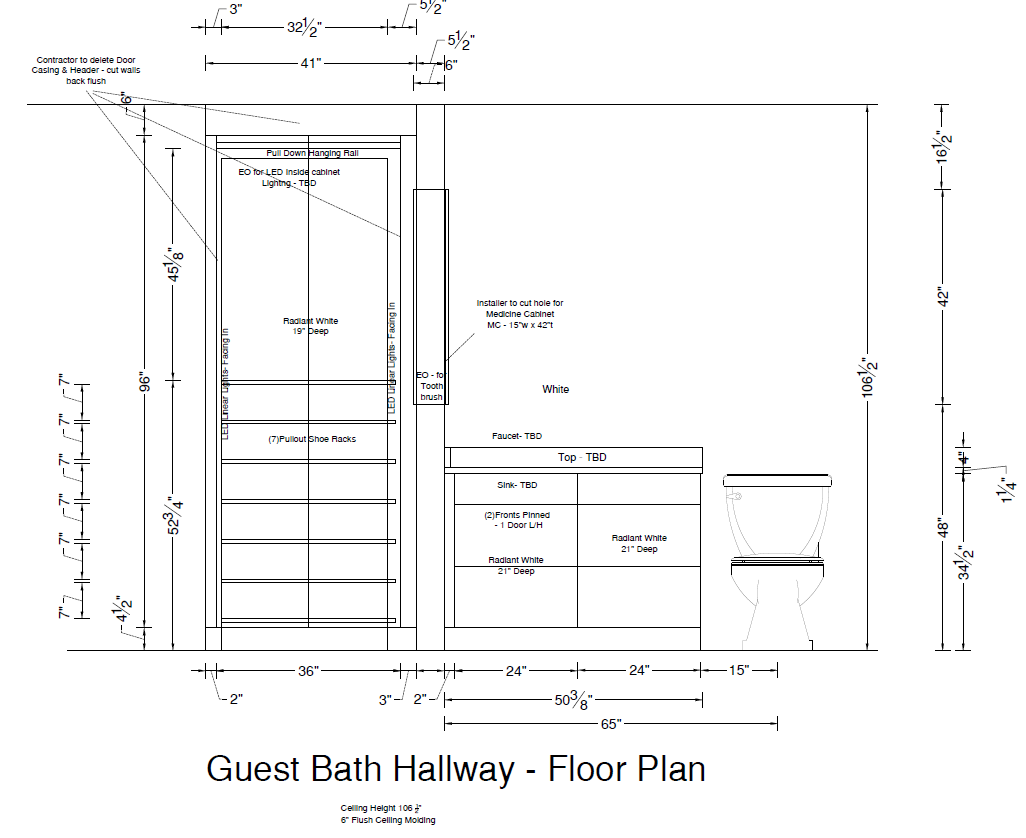

floor plan for a guest bath hallway details a combination of storage and vanity units here are the key specifications from the drawing dimensions layout total width the main built in area spans 65 including a 36 wide storage cabinet and a 24 wide vanity total height the ceiling height is marked at 106 with a 6 flush ceiling molding toilet clearance there is a 15 space allocated from the edge of the vanity to the center of the toilet storage cabinet left features includes a pull down hanging rail at the top and 7 pullout shoe racks at the bottom lighting specified for led linear lights facing inward and an electrical outlet eo for a future led inside cabinet light depth the unit is 19 deep in radiant white vanity sink area right vanity a 24 wide unit 21 deep also in radiant white it features two pinned fronts and one left hand l h door countertop the top and sink are noted as tbd to be determined with a standard height of 34 to the top of the vanity base medicine cabinet above the vanity is a space for a 15 w x 42 h recessed medicine cabinet an outlet eo is provided nearby for an electric toothbrush
