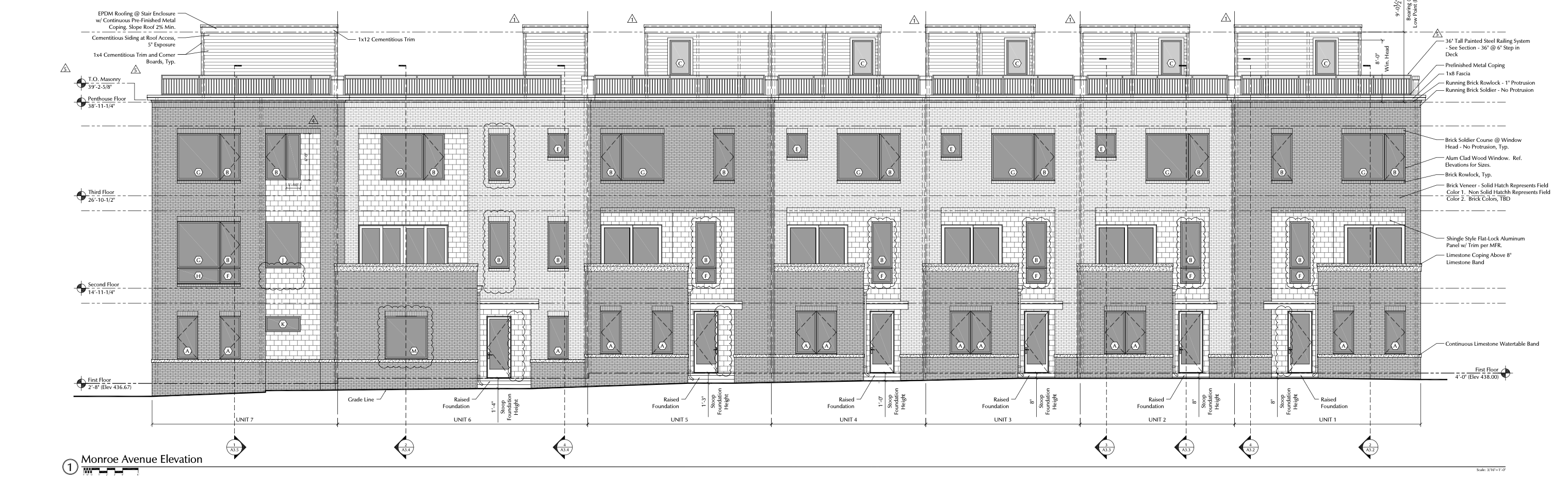

roof parapet and penthouse elevations t o masonry top of masonry 39 2 5 8 penthouse floor 34 11 1 4 roofing enclosures epdm roofing stair enclosure w continuous pre finished metal coping slope roof 2 min railings continuous railing roof terrace typ 36 tall painted steel railing system see section 42 6 step deck trim details pre finished metal coping 1x8 fascia 1x4 cementitious trim and corner boards typ 1x2 cementitious trim exterior facade walls windows and detailing elevations third floor 25 10 1 2 second floor 14 11 1 4 primary siding brick brick veneer solid hatch represents field color 1 non solid hatch represents field color 2 brick colors tbd brick detailing brick rowlock typ running brick rowlock 1 protrusion running brick soldier no protrusion brick soldier course window head no protrusion typ secondary siding accents shingle style flat lock aluminum panel w trim per mfr limestone coping above 8 limestone band windows alum clad wood window ref elevations for sizes base foundation and ground level elevations first floor 2 0 elev 438 20 left side first floor 0 0 elev 436 20 right side base detailing continuous limestone watertable band ground foundation elements grade line raised foundation indicated beneath individual units stoop foundation height indicated beneath individual units no landscaping for now use reference materials to determine color of materials
