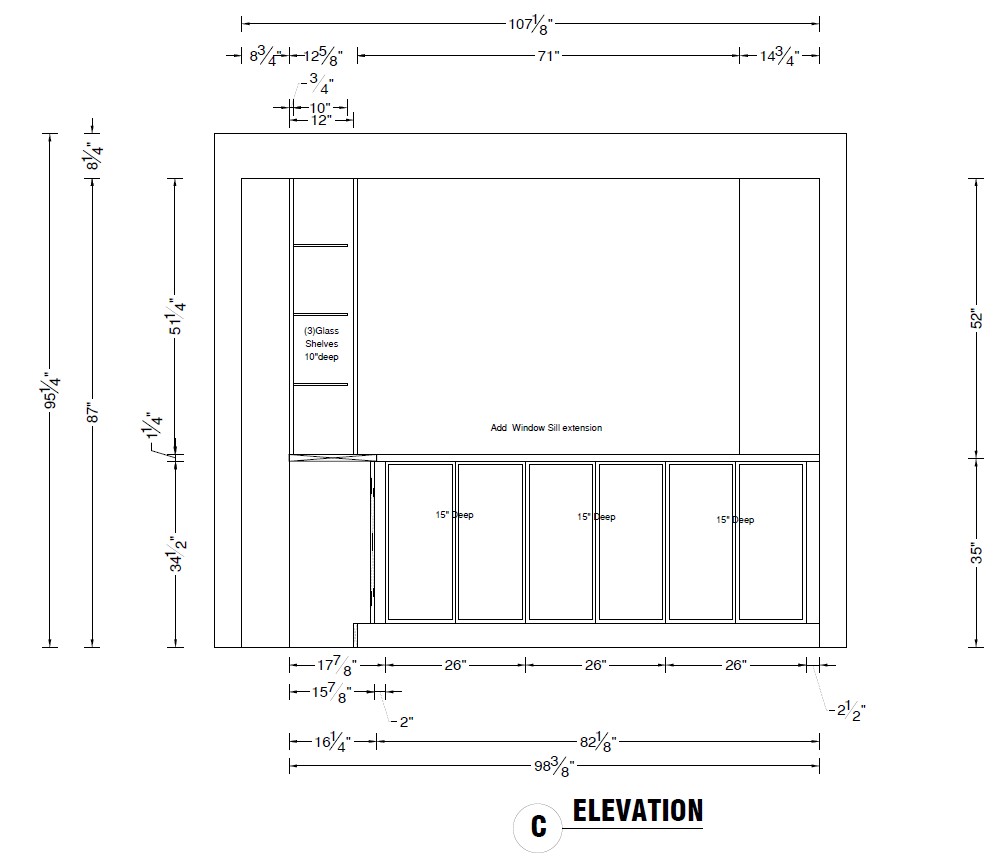

key dimensions features overall footprint the entire unit spans 107 wide and stands 95 tall base cabinetry the base consists of three main sections each 26 wide and 15 deep the total width of the lower cabinet section is 82 with a height of 35 it includes a note to add window sill extension suggesting this unit sits below or adjacent to a window vertical shelving left side features a tall vertical section 17 wide includes 3 glass shelves that are 10 deep the shelving area has a clear height of 51 clearance spacing there is an 8 gap on the far left and a 14 gap on the far right between the unit and the outer frame the main central opening above the base cabinets is 71 wide design notes the drawing uses a standard elevation view which is a flat representation of the front of the unit the various dashed and solid lines indicate different planes of depth e g the 15 deep base vs the 10 deep upper shelves
