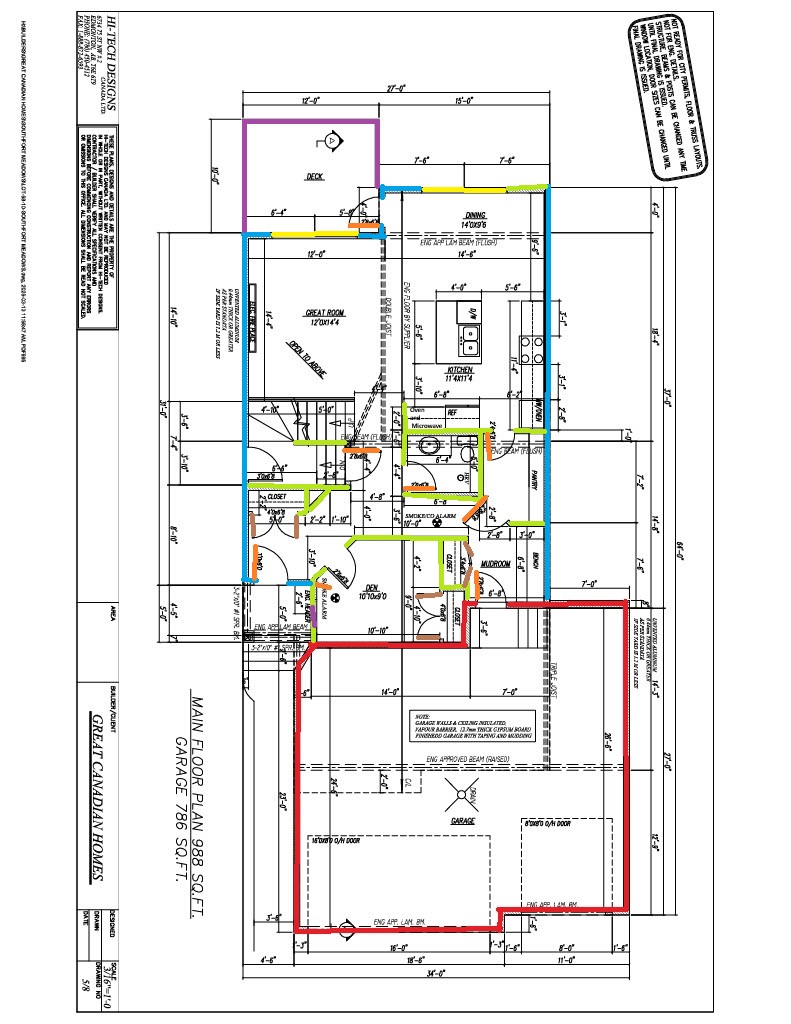

convert this floor plan into a realistic isometric 3d view of a full house show the space from an elevated angle with furniture walls and details visible this is extremely helpful your colour coded plan makes everything very clear let me compare the two images carefully what s still wrong in image 1 vs your marked plan 1 garage shape is wrong your red lines show the garage has an l shaped stepped footprint the left two stalls extend further back 26 6 and the right single stall is shorter 23 0 the render shows a plain rectangle 2 deck is not covered you ve confirmed it s a regular open deck not covered remove the roof cover over it 3 den location is wrong your green lines show the den is tucked between the garage and the main living area sharing the wall with the mudroom in the render it s floating separately 4 pantry is missing your green lines clearly show a dedicated pantry room on the right side between the kitchen and mudroom it s not visible in the render at all 5 mudroom shape is wrong your markings show it s a proper enclosed room with its own walls wider than shown 6 main entry is on the left side west wall based on your blue lines the render has it roughly right but the entry vestibule shape is off 7 windows placement your yellow lines show windows along the rear north wall of the great room and dining area that aren t reflected accurately here is your corrected full prompt to start fresh realistic 3d floor plan isometric aerial view of the main floor of a single family home total living area 988 sq ft do not add any covered roof over the deck the entire main floor living area is one flat level with zero interior steps or level changes use the following exact room layout exterior shape the main home living area is a roughly rectangular footprint 27 0 wide x 37 0 deep attached to the south front is a triple garage with an l shaped footprint the left portion 18 0 wide housing 2 stalls extends 26 6 deep and the right portion 11 0 wide housing 1 stall is only 23 0 deep creating a clearly visible step in the rear garage wall rooms from back north to front south open deck 12 0 x 10 0 open air no roof no cover attached to the rear north wall of the dining room accessible via sliding patio door from dining room wood decking with railing dining room 14 0 x 9 6 rear right of living area open to kitchen sliding door leads to deck large windows on north wall great room 12 0 x 14 4 rear left of living area open concept flowing into dining and kitchen open to above vaulted two storey height large windows on west and north walls kitchen 11 4 x 11 4 center right open to dining has a central island with sink appliance wall wall oven microwave refrigerator is on the wall shared with the 2 piece bathroom counters along east and north walls pantry enclosed room on the east side directly off the kitchen to the south has shelving accessed from kitchen only 2 piece bathroom center of the home south of the kitchen island contains toilet and sink only shares wall with kitchen appliance wall staircase central adjacent to the great room on the east side going up to the upper floor open railing coat closet small closet near the main entry on the west wall main entry west side of the home with a front door opens into the main living area near the great room den office 10 10 x 9 0 south portion of the living area between the main entry and the mudroom shares wall with garage has a window on the west wall mudroom south east of living area directly accessible from the garage interior has bench and closet walk through pantry connects mudroom to kitchen garage entry door interior door from garage into mudroom garage triple attached garage l shaped footprint 34 0 total width left section 18 0 wide x 26 6 deep houses 2 stalls one 18 x9 double overhead door on the front right section 11 0 wide x 23 0 deep houses 1 stall one 8 x9 single overhead door on the front stepped rear wall clearly visible concrete floor finished walls engineered raised beam across the garage opening show 3 cars parked inside finishes hardwood wood look flooring in great room dining kitchen hallways tile in bathroom and mudroom concrete in garage 9 foot ceilings throughout living area use the same furniture as shows on the plan do not change the orientation of the floorplan
