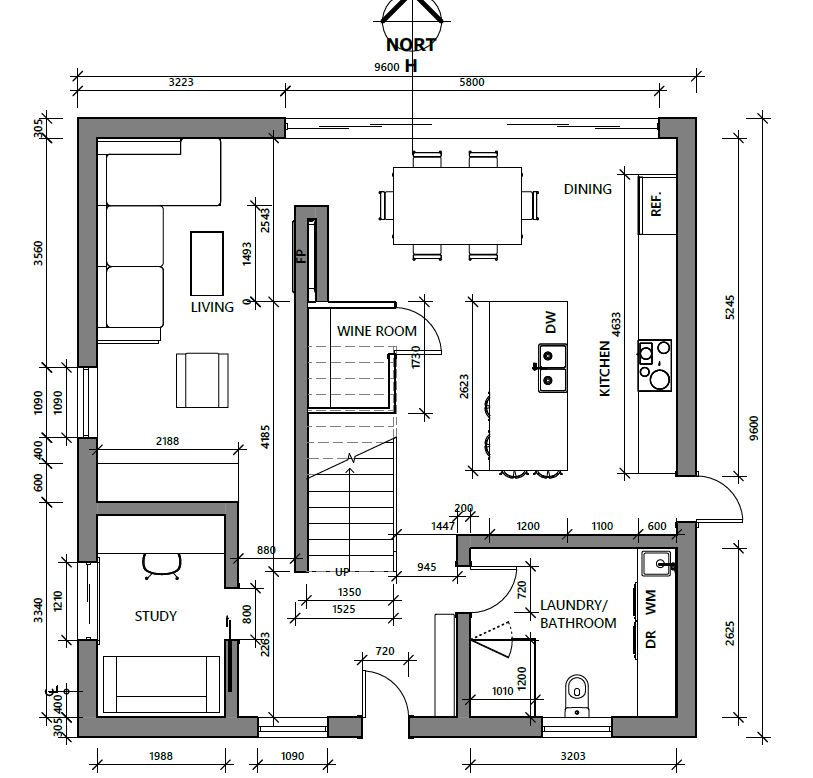

i need an electrical floorplan black and white you are to produce a full internal lighting and electrical design to suit the floor plan you created in assignment 4 the lighting and electrical design is to be drawn onto an electrical plan aka a reflected ceiling plan and on the plan you will need to show all light fixtures power outlets switches dimmers wiring smoke detectors exhaust fans and any other electrical equipment that is hardwired that will need to be communicated to your electrician the existing house was built in the 1950s and features 2700mm high ceilings a site analysis has been performed and found that the house will need to be completely rewired and updated to meet the demands of a modern family
