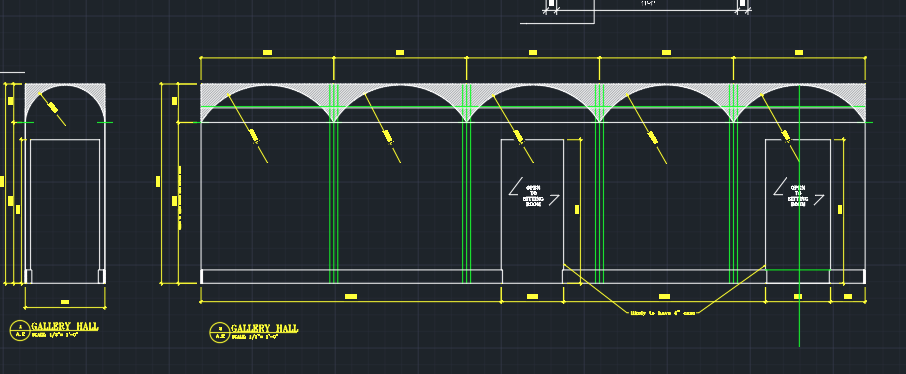

robert a m stern interior shot use the uploaded drawing as dimensional reference do not reinterpret proportions model directly from the provided geometry create a 3d corridor with the following constraints overall corridor length 24 0 clear finished width 5 0 ceiling height 11 0 doors door height 8 0 casing 4 top of casing at 8 4 aff vault geometry create true groin vaults using intersecting half cylinder barrel vaults spring line elevation 8 6 aff vault span 5 0 vault radius 2 6 vault rise 2 6 crown elevation 11 0 aff divide the 24 0 length into 5 equal bays each bay depth 4 9 3 4 generate one barrel vault per bay running longitudinally intersect with perpendicular barrel vaults at each bay centerline to form true groin intersections use boolean intersection geometry not spline approximations ensure vault does not intersect door casing maintain 2 flat wall above casing before spring curve begins groin lines are crisp and symmetrical output accurate 3d model with realistic plaster surface provide one orthographic elevation view and one perspective interior view architecture
